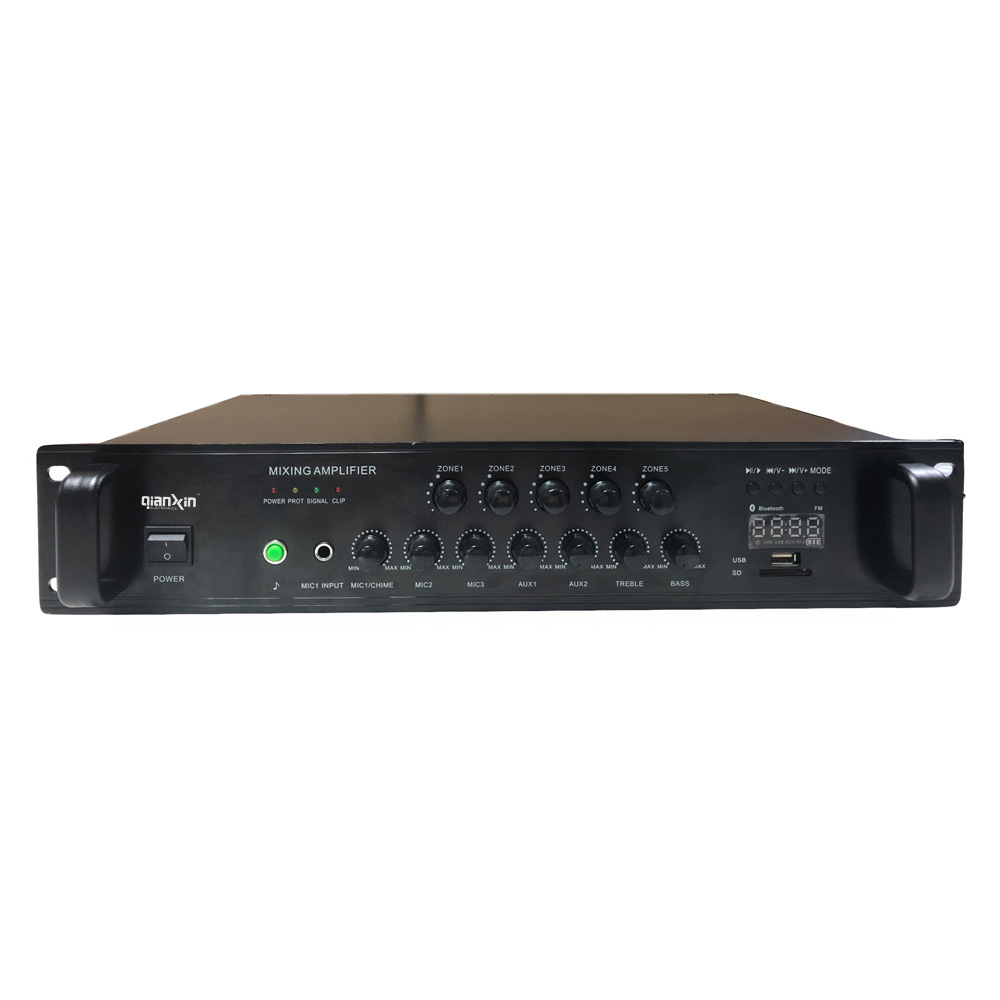

Product DetailsDPA-6060/6120 Multi-room Commercial Audio Systems
· Multi-room commercial audio systems requiring different audio sources & multiple paging microphones;
· 6 zone mixer amplifier with USB/SD/FM/Buletooth audio player;
· 6 channel power amplifier & 6 channel audio matrix;
· Support both 100V or 8~16 ohms speaker applications;
· 6 independent output zones with attenuation;
· 3 Mic/Line inputs, 1 Aux input & an integral audio player matrix switched to any of the 6 zones independently;
· 3 Mic/Line switchable input with +48V phantom power balanced combo XLR;
· Each input with bass/treble includes 3 Mic/Line & 1 auxiliary input;
· Mic1 with VOX highest priority and chime functions;
· 24V mute contact to active the built-in pre-recorded Alert/EVAC message;
· Monitor headphones output with attenuation;
· Up to 6 remote microphones DPA-6RM connection to the amplifier through CAT6 cable;
· Up to 6 remote control panels DPA-6RC connection to the amplifier through CAT6 cable;
· Remote control panels DPA-6RC ｓｅｌｅｃｔ source, adjust volume and input Bluetooth;
· With complete protection includes short-circuit, clip, overload and high temp;
· Rated power output:6x60W(DPA-6060)/6x120W(DPA-6120);

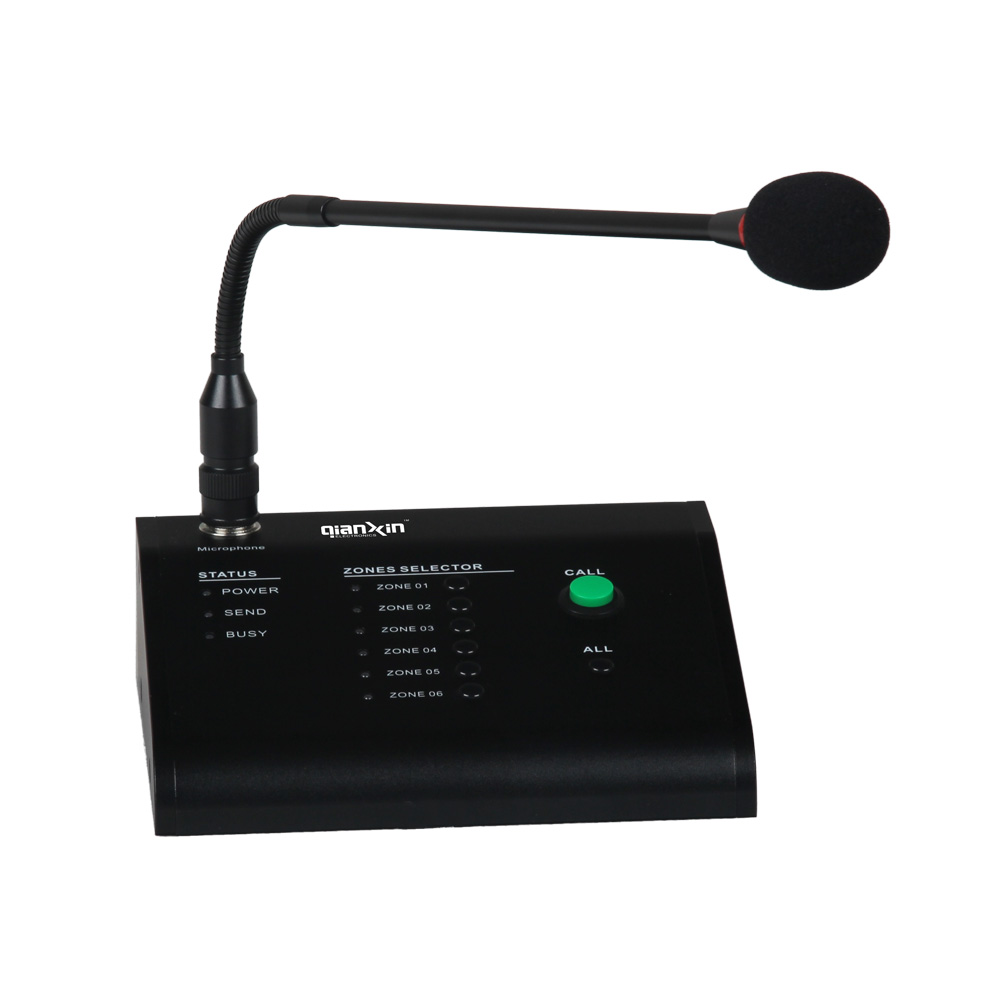

DPA-6RM Remote Microphone
· Works with DPA-6060/DPA-6120 for emergency notification and remote paging applications;
· One microphone input and one line input;
· Output volume adjustor;
· Build in call button to send chime;
· Chime and microphone input with mute function;

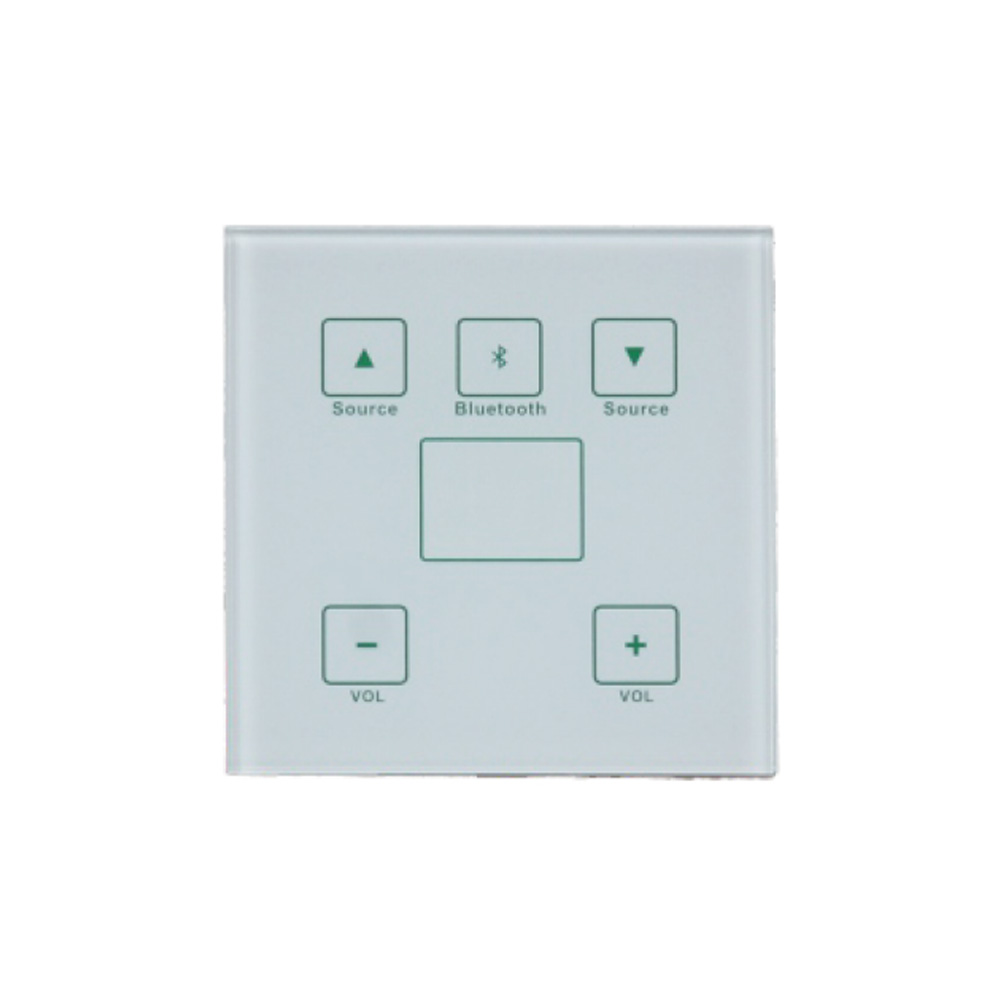

Remote Control Panel
· Works with DPA-6060/DPA-6120 for remote control;
· Touch-control panel;
· Two source switch key;
· Bluetooth switch key;
· Volume- and volume+ key;
· Digital tube display;
